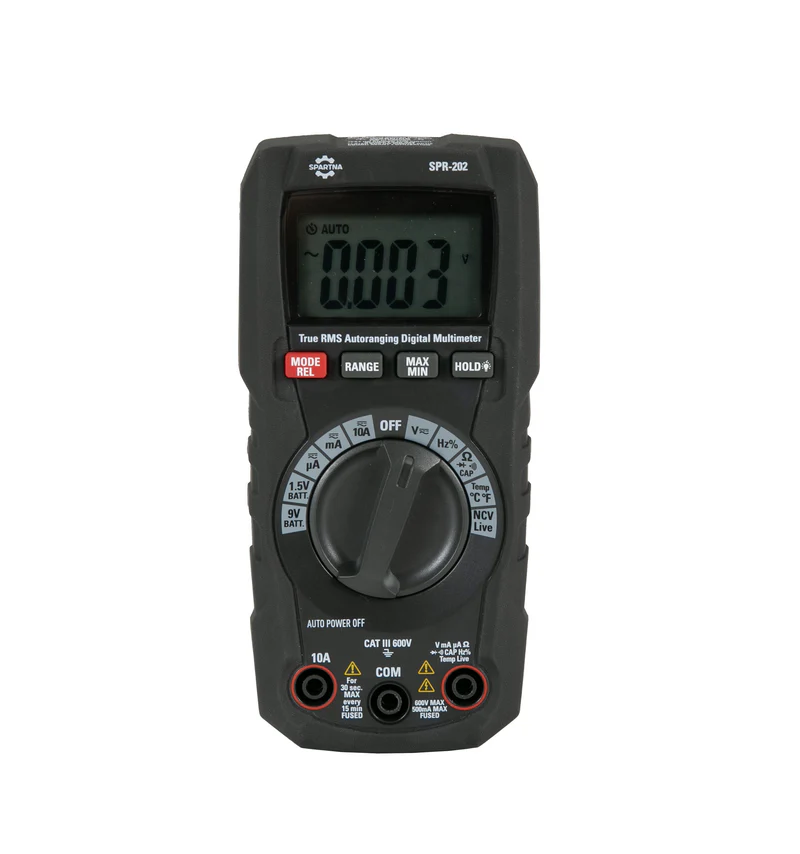

Spartna SPR-202 True RMS Autoranging Multimeter

• Digital display 4000 counts with backlit.
• True RMS measurement.
•  MAX/MIN hold.
•  Diode and continuity buzze check.
•  Auto power off.
•  Data Hold/REL measurement.
•  Non-Contact ACV & ACV live detection.
•  Full ranges protection.
•  Drop tested up to 2 meters.
•  Accessories: Manual, test leads, battery type K temperature probe
  and carrying case.

Specification

• DC Voltage
  Range: 0.0mV to 600V
  Accuracy: ±0.5%
  Resolution: 0.1mV
• Type K Temperature
  Range: -18 to 1000°C (0 to 1832°F)
  Accuracy: ±1.5%
  Resolution: 1°C (1°F)
• Capacitance
  Range: 0.0nF to 4mF
  Accuracy: ±3.5%
  Resolution: 0.1nF
• AC Current
  Range: 0.0µA to 10A
  Accuracy: ±2.0%
  Resolution: 0.1µA
• Continuity : Audible signal if the resistance is 50Ω
• Auto Power off : Approx. 15 minutes
• Diode Test : Test Current approx. 1mA, open
  circuit voltage of 2V typical
• AC Voltage
  Range: 0.0mV to 600V
  Accuracy: ±1.2%
  Resolution: 0.001V
• Frequency  Range: 0.001Hz to 10MHz
  Accuracy: ±1.5%
• DC Current
  Range: 0.0µA to 10A
  Accuracy: ±1.5%
  Resolution: 0.1µA
• Resistance
  Range: 0.0Ω to 40.00MΩ
  Accuracy: ±3.0%
  Resolution: 0.1Ω
• Power 2 x 1.5V battery
• Dimensions : 151mm x 75mm x 45mm
• Storage Temperature  : -10 to 50 ºC (14 to 122ºF)
• Operating Temperature  : 5 to 40 ºC (41 to 102ºF)
• Weight 255g
